Large fine oven designed to support high throughput.
Features of Fine Oven (Large Capacity) (DF1032)

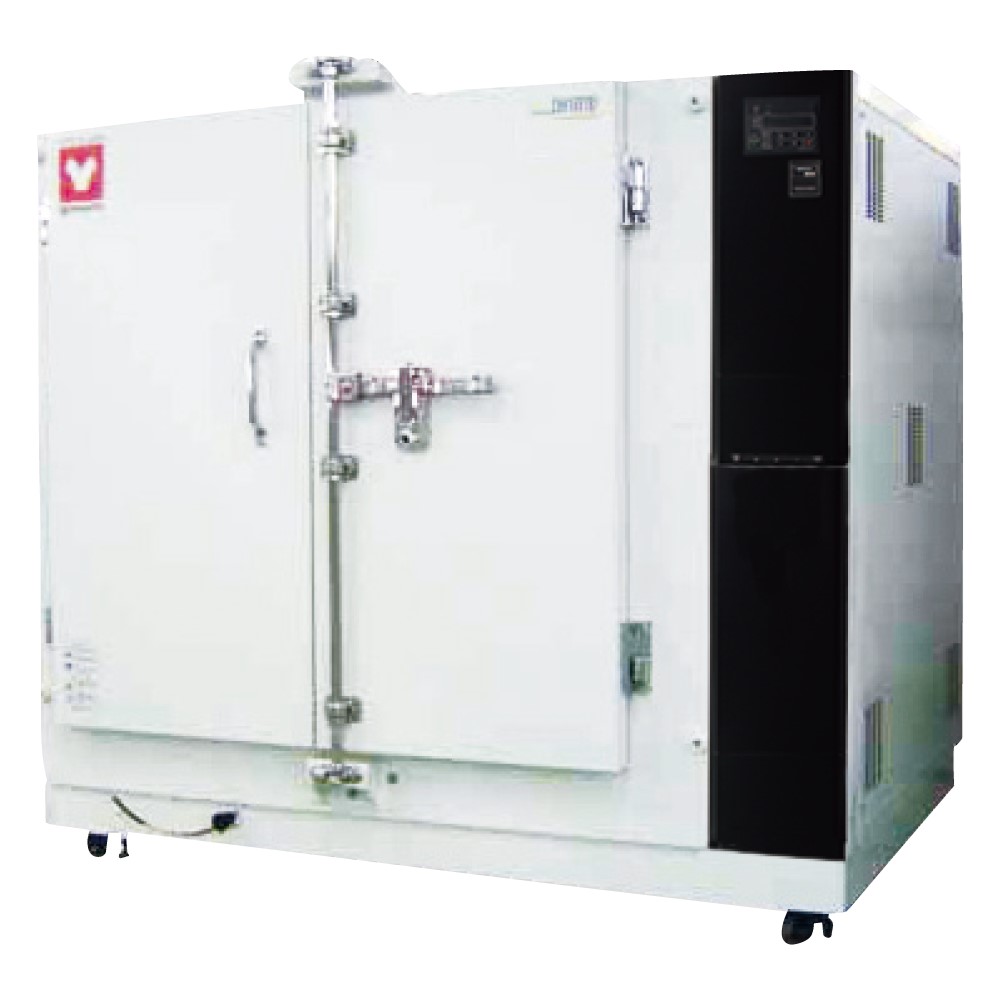

Fine Oven (Large Capacity) (DF1032)
Description
- Features
- Allows precision maintenance of large parts at a constant temperature
Quick exhaust and cooling in the unit with the exhaust damper
Interactive key entry on the control panel with a green LED digital display for easy settings
Features power consumption/ CO2 emissions monitoring
Increased safety and self-diagnostic functions
| Model | DF1032 |
|---|---|
| Fan motor | Axial flow fan (capacitor motor: 20W), Two motors used for Model 1032 |
| Cable port | I.D. ø30mm (rear) |
| Heat insulator | Glass wool |
| Other additional structure | Exhaust damper (manual operation) |
| Safety device | Self-diagnostic functions (temp. sensor error, heater disconnection, SSR short-circuit, automatic overheat prevention), Door switch, Fan Failure Detection, key lock, independent overheat protection, electric leakage breaker with over current protection |
| Shelf / support | 3 pcs. / 6 pcs. |
| System | Forced air circulation and ventilation |
| Operating temp. range | Room temp. +15°C~200°C |
| Temperature fluctuation | 3.0°C (at 200°C) |
| Temperature slope | 12°C (at 200°C) |
| Temperature controller | PID control |
| PID Z control Temp setting method | Digital setting with ▲/▼ keys |
| Timer | 1 min~99 hrs 59 min (Resolution: 1 minute or 1 hour) |
| Operation function | Fixed temperature operation, Program operation (Maximum 99 steps, up to 99 patterns, repeat operation function) |
| Operation function | Duration/time select timer operation function (Fixed temperature operation, auto start/auto stop/quick auto stop, program operation auto start) |
| Additional functions | Accumulated Power on and Operation Time (up to 65,535 hours); Calendar Time (24 hours); Calibration Offset; Monitor Display of Accumulated Power Consumption, |
| Additional functions | Total CO2 Emission, and Heater operating Output; Power Recovery Mode; User Settings Save and Restore Function; Fan Speed Setting Function |
| Sensor | K-thermocouple (double sensor) |
| Heater | Stainless steel pipe heater with fins |
| Heater | 6.0kW |
| Internal dimensions（W×D×H mm） | 1000×1000×1000mm |
| External dimensions（W×D×H mm） | 1700×1215×1530mm |
| Remarks(dimensions) | 1000L |
| Power Source | AC220V 19A Three-phase |
| Weight | 450kg |
