Highly reliable accuracy oven with simple settings for various temperature characteristics test that require complicated programming.

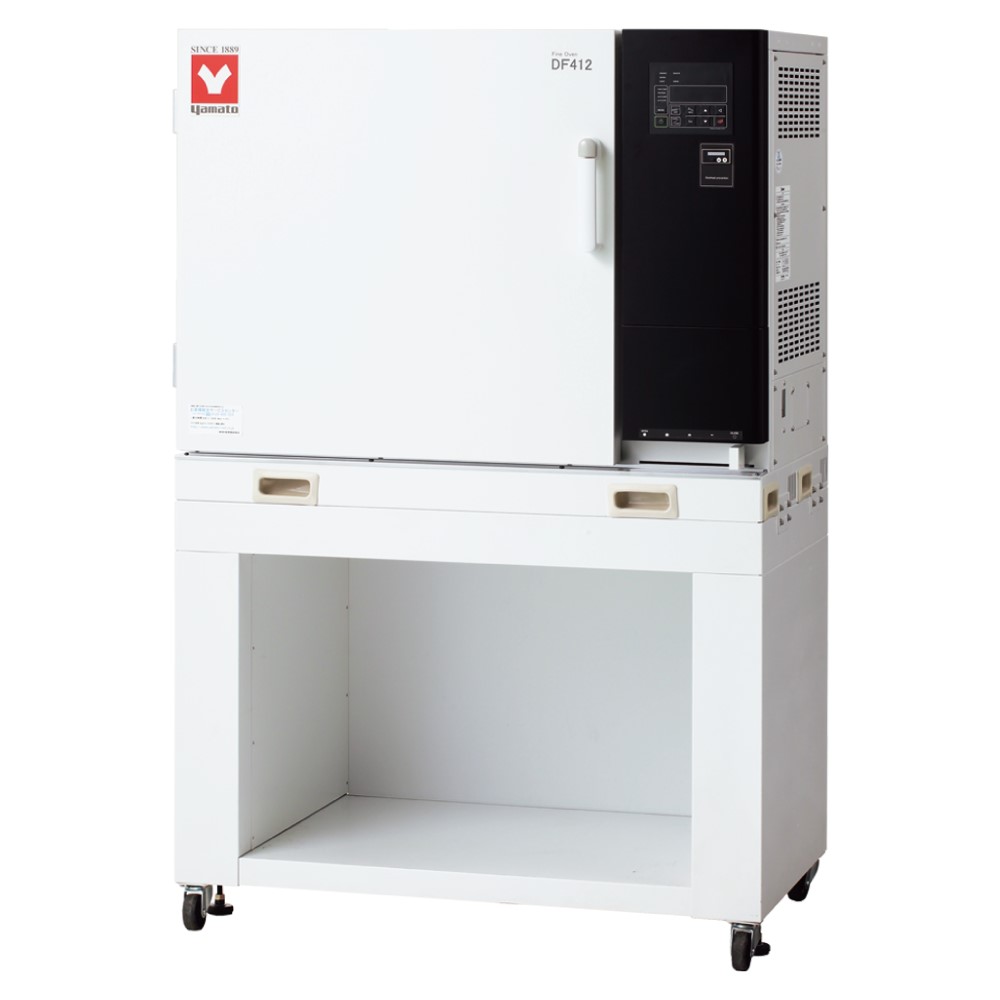

Features of Fine Oven (DF412)
Highly reliable accuracy oven with simple settings for various temperature characteristics test that require complicated programming.
Features of Fine Oven (DF412)
Features
Simple Operation by Interactive Key Input.
Features
Operation Monitor visualizes Controller Status, Temp and Temp. Changing.
Features
Incorporates with maximum 99 steps, 99 patterns program controller with repeat function.
Features
Loaded with Total Operation Hours Timer.
Features
Exhaust damper allows quick exhaust and cooling of inside.
Features
Accumulated timer function useful for maintenance and management is equipped as standard.
Features
Cable port useful for a monitor for temperature during testing is equipped as standard.
Model | DF412 |
---|---|
System | Forced convection and ventilation |
Operating temp. range | Room temp. + 15 to 260℃ |
Temp. control accuracy (JTM K05) | ±0.1℃(at 260℃) |
Temp. fluctuation (JIS) | 1.0℃(at 260℃) |
Temp. distribution accuracy (JTM K05) | ±1.5℃(at 260℃) |
Temp. gradient (JIS) | 10℃(at 260℃) |
Time to attain max. temp. | Approx. 50 min. (to 260℃) |
Temp. control system | PID control with a micro computer |
Temp. and time setting system | Digital Setting by UP/DOWN Key |
Timer display range | 1 min. to 99 hr 59 min. and 24hr. setting |
Operation and manipulation functions | Fixed temp., Auto-start, Auto-stop, Quick auto stop, program (Max.99 steps, 99 patterns, repeat) |
Additional functions | Calendar timer (max. 24 Hrs.), Integration time (max. 65535Hrs.), Clock, Calibration off-set, Display the amount of Power consumption |
Additional functions | CO2 discharge/Heater operation amount, Power failure recovery mode, User setting information save and recall, Wind velocity changeable function |
Sensor | Double K-thermocouple |
Heater | Stainless pipe heater |
Blower fan (motor) | Axial flow fan (capacitor motor) |
Cable port | I.D. 33 mm x 1 pc (rear) |
Heat insulator | Glass wool |
Safety device | Self diagnosis functions(Sensor, Fan, Heater, Relay, Triac, Automatic overheat prevention), Independent overheat prevention, Key lock function, Electric leakage breaker, Door switch |
No.of shelf stages/peg pitch | 9 stages/45 mm |
Accessories Shelf | 2 pcs |
Accessories Shelf support | 4 pcs |
Internal dimensions(W×D×H mm) | 450×450×450mm |
External dimensions(W×D×H mm) | 1050×630×850mm |
Remarks(dimensions) | 91L |
Power Source | AC220V 10A Single-phase |
Weight | 112kg |
