Description

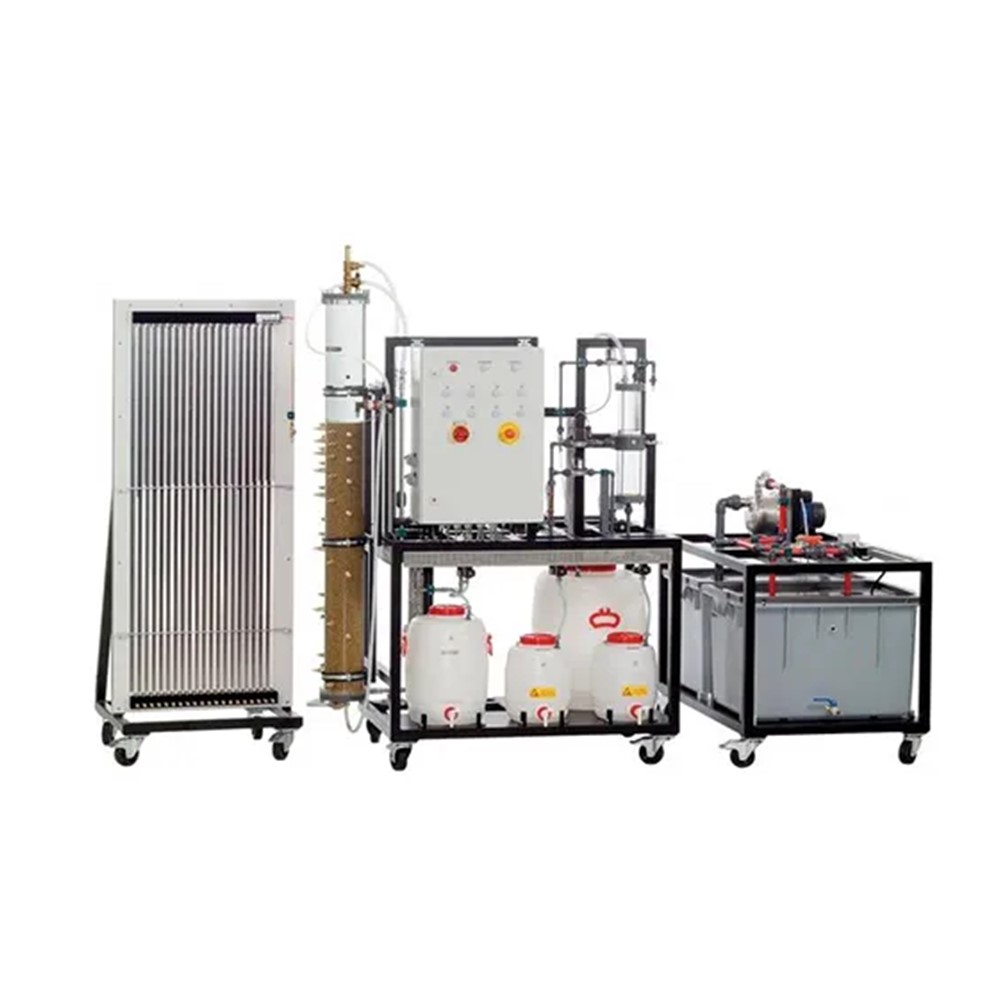

MR004W Filtration Pilot Plant Vocational Training Equipment Didactic Equipment Water Treatment Training Equipment

This filtration plant mainly consists of a sand filter and of an activated carbon filter; filtered water is collected into a tank of stainless steel from which samples for proper laboratory analyses can be extracted. An in-line turbidimeter enables to measure the turbidity of water fl owing in and out of filters.
Process control, data acquisition and supervision are automatically carried out by a microprocessor controller and by a specifi  control and supervision software that enables the remote control of various operational
Parameters
• Framework of AISI 304 stainless steel with castors
• Sand filter of borosilicate glass with decreasing particle size and capacity of 30 l
• Activated carbon filter of borosilicate glass with capacity of 30 l
• 4 pressure gauges, with range of 0 to 10 m of water column
• Centrifugal pump with casing and rotor of AISI 304 stainless steel and fl ow-rate of 3000 l/h

• Metering pump of plastic material for sodium hypochlorite, with flow rate of 3 l/h
• Metering pump of plastic material for flocculant, with flow-rate of 3 l/h
• 2 feed tanks of AISI 304 stainless steel with capacity of 120 l
• Tank of AISI 304 stainless steel for collecting the filtered water with capacity of 200 l
• Thermoresistance Pt 100 with sheath of AISI 316 stainless steel
• Board-type electronic temperature indicator
• Switchboard IP55, complying with EC conformity mark, including plant synoptic and ELCB
• Connecting lines and valves of AISI 304 and 316 stainless Steel
• Pneumatic control valve of stainless steel AISI 316 for feed flow rate of water, Cv = 2.5

• Electropneumatic converter (4 to 20 A / 0.2 to 1 bar)
• Electronic turbidimeter for measuring the turbidity of the water flowing in and out of filters, with programmable range and 4 to 20 mA output signal
• Digital microprocessor PID controller, with two control loops
• Supervision software for Windows: it enables to control ON-OFF signals, analog signals coming from PID controller, realtime trend and historical trend
Power supply: 230 Vac 50 Hz single-phase – 1,5 kVA
(Other voltage and frequency under request)
Dimensions: 2150 x 750 x 2000 mm
Weight: 460 kg
Supplied
THEORETICAL – PRACTICAL – EXPERIMENTAL HANDBOOK
Installation, Training and Commisisoning is required.
