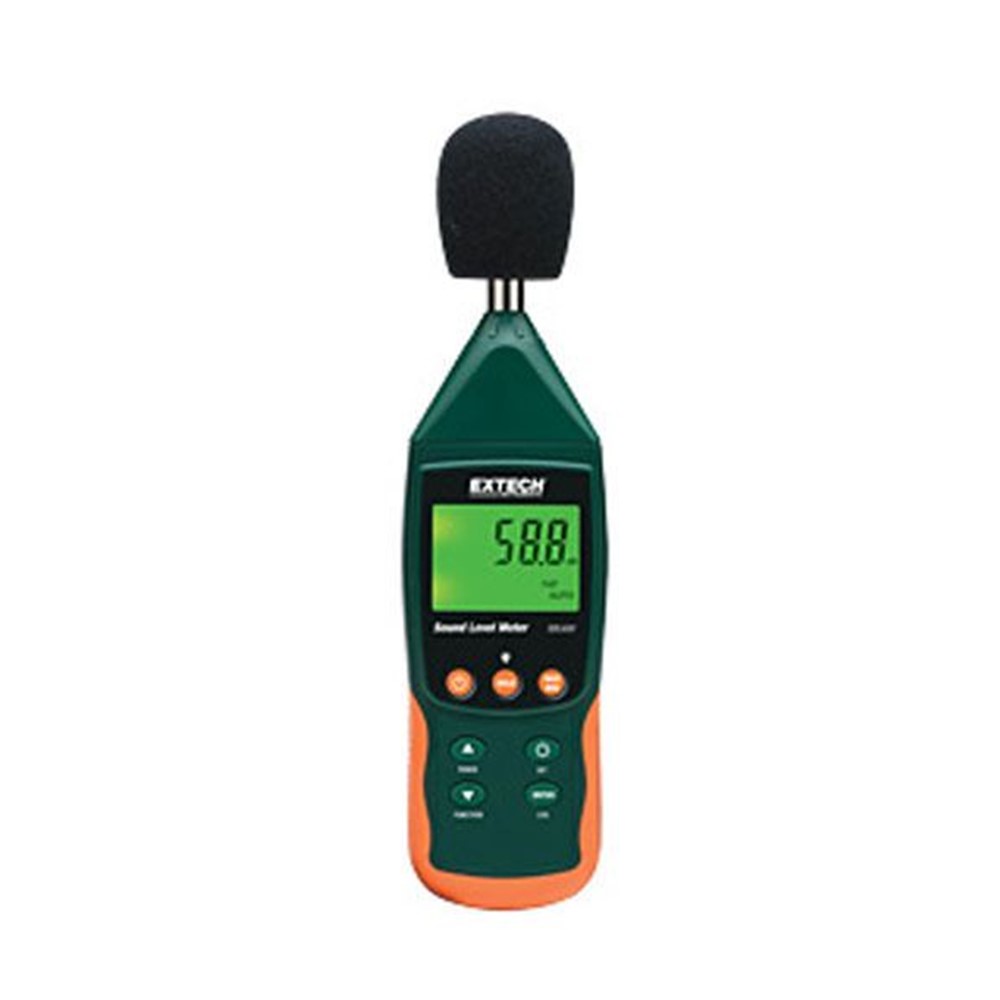

Extech Sound Level Meter/Datalogger

The Extech Datalogging Sound Level Meter meets new IEC 61672-1 Class 2 accuracy standard for OSHA and other local and national noise ordinances.

Features

  • 30 to 130dB measurement range
  • Auto or manual ranging
  • AC analog output for connection to an analyzer or recorder
Category:

Description

The Extech Datalogging Sound Level Meter has an AC analog output for connection to an analyzer or recorder. The high accuracy meter meets ANSI and IEC 61672-1 Type 2 standards. The meter’s automatic or manual range is from 30 to 130dB. 99 readings are stored manually and 20M readings via the 2G SD card. User programmable sampling rate is from 1 to 3600 seconds. The built-in PC interface allows users to further evaluate data points. Additional features include min/max, data hold, and automatic power off with disable function.

  • Range: 30 to 130dB (3 ranges)
  • Accuracy: +/-1.4dB
  • Frequency range: 31.5 to 8000Hz
  • Weighting: A and C
  • Response time: fast (200ms) / slow (500ms)
  • Datalogging: 20M data records using a 2G SD card
  • Analog output: AC
  • PC interface: USB
  • Dimensions: 9.8×2.9×1.9″ (250x73x48mm)
  • Weight: 18.3oz (520g)
