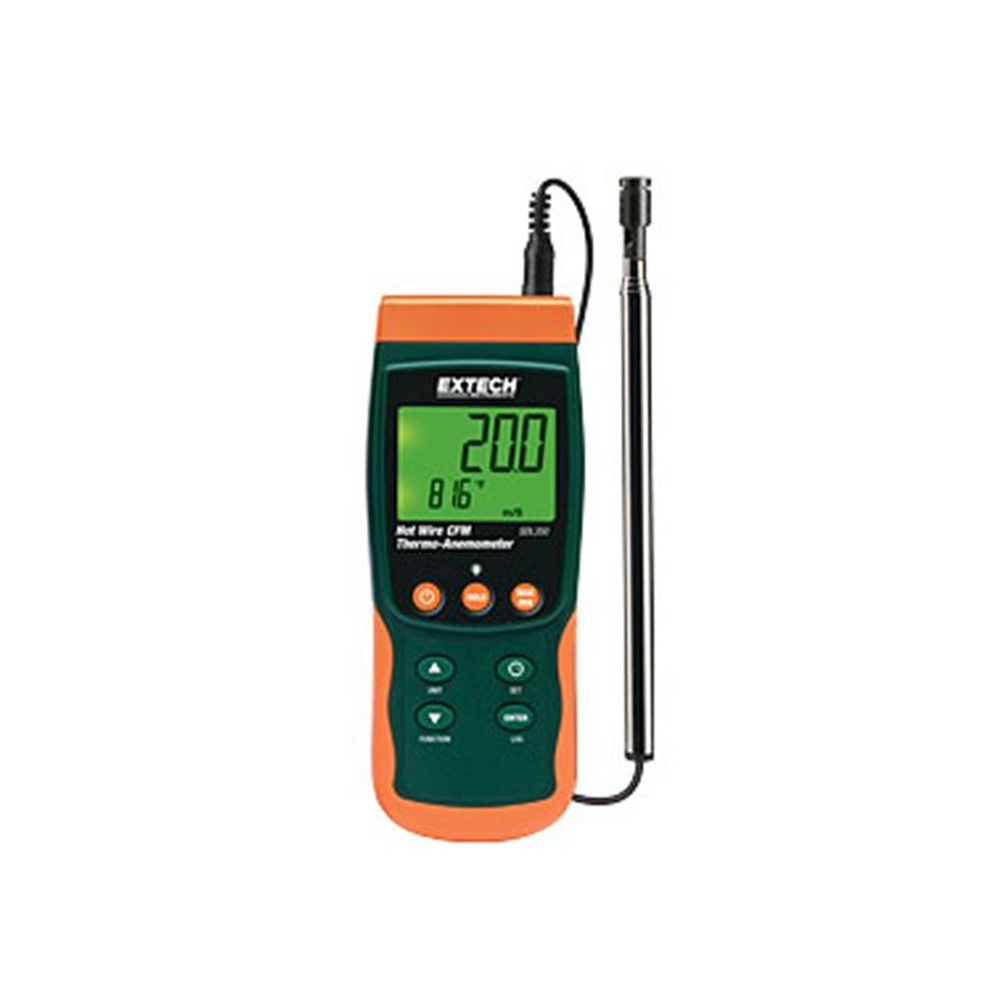

Extech SDL350 Hot Wire CFM Thermo-Anemometer/Datalogger

The Extech Hot Wire CFM Thermo-Anemometer/Datalogger measures air velocity and air flow through a telescoping probe for extened reach.

Features

  • Probe extends up to 7.05ft (215cm) maximum length with cable
  • Stores 99 readings manually and 20M readings via 2G SD card
  • Telescoping probe designed to fit into HVAC ducts and other small openings
Category:

Description

The Extech Hot Wire CFM Thermo-Anemometer/Datalogger date and time stamps and stores readings on an SD card for easy transfer to a PC. The datalogger measures air velocity and air flow with a telescoping probe designed tofit into HVAC ducts and other small openings. The probe extends up to 7.05 feet maximum lenght with cable. The meter stores up to 99 readings manually and 20M readings via the 2G SD card, and adjustable sampling rates range from 1 to 3600 seconds. The type K/J thermocouple input allows for high temperature measurements. Additional functions include record/recall min/max readings, data hold, and automatic power off with disable.

  • Air velocity m/s range: 0.2 to 25m/s
  • Air velocity m/s resolution: 0.01m/s
  • Air velocity m/s basic accuracy: ±5%rdg
  • Air velocity ft/min range: 40 to 3940ft/min
  • Air velocity ft/min resolution: 1ft/min
  • Air velocity ft/min basic accuracy: ±5%rdg
  • Air velocity MPH range: 0.5 to 45MPH
  • Air velocity MPH resolution: 0.01MPH
  • Air velocity MPH basic accuracy: ±5%rdg
  • Air velocity knots range: 1 to 31knots
  • Air velocity knots resolution: 0.01knots
  • Air velocity knots basic accuracy: ±5%rdg
  • Air velocity km/h range: 0.7 to 72km/h
  • Air velocity km/h resolution: 0.01km/h
  • Air velocity km/h basic accuracy: ±5%rdg
  • CFM( feet3/min) range: 0 to 1,907,000 CFM
  • CFM( feet3/min) resolution: 0.001 to 100 CFM
  • CMM (meter3/min) range: 0 to 54,000 CMM
  • CMM (meter3/min) resolution: 0.001 to 1 CMM
  • Temperature range: 32 to 122°F (0 to 50°C)
  • Temperature resolution: 0.1°
  • Temperature basic accuracy: ±1.5ºF (±0.8ºC)
  • Type K temperature range: -148 to 2372°F (-100 to 1300°C)
  • Type K temperature resolution: 0.1°
  • Type K temperature basic accuracy: ±(0.4% + 1.8°F/1°C)
  • Type J temperature range: -148 to 2192°F (-100 to 1200°C)
  • Type J temperature resolution: 0.1°
  • Type J temperature basic accuracy: ±(0.4% + 1.8°F/1°C)
  • Memory: 20 million data records using 2G SD card
  • Dimensions: 7.2 x 2.9 x 1.9″ (182 x 73 x 47.5mm)
  • Weight:  23.1oz (655g)
