Extech Non-Contact Phase Sequence Tester

The Extech Non-Contact Phase Sequence Tester checks phaes sequence and status up to 1000VAC with LED and audible indication.

Features

  • 75 to 1000VAC input voltage with 45 to 65Hz frequency range
  • Fully insulated alligator clips with wide jaws
  • LEDs indicate phase orientation
Category:

Description

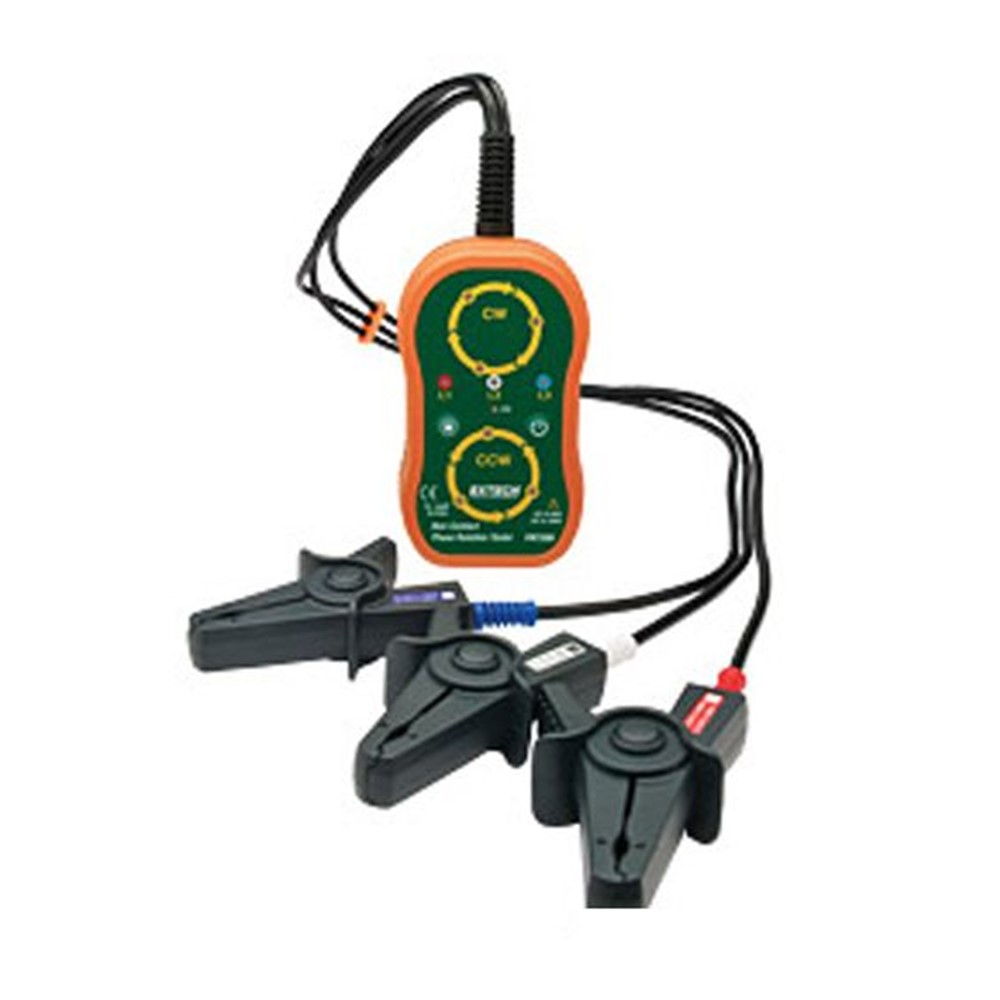

The Extech Non-Contact Phase Sequence Tester has a 75 to 1000VAC input voltage with 45 to 65Hz frequency range. The LED lights indicate phase orientation, clockwise or counter-clockwise, and whether each phase is live. The beeper sounds intermittently when a corret phase is detected and continuously if a phase is reversed. The durable housing with back cover magnet is used to attached to an AC distribution panel for easy measurement. The adjustable high/low LED brightness switch allows for measurements in dimly lit area.

  • Dimensions: 4.7 x 2.7 x 1.5″ (118 x 69 x 38mm)
  • Weight: 13oz (370g)
