The Extech High Resolution Milliohm Meter provides resolution down to 0.01m using 4-wire kelvin clip test leads.
Features
- High resolution to 0.01m
- Automatic zero
- 5V test voltage

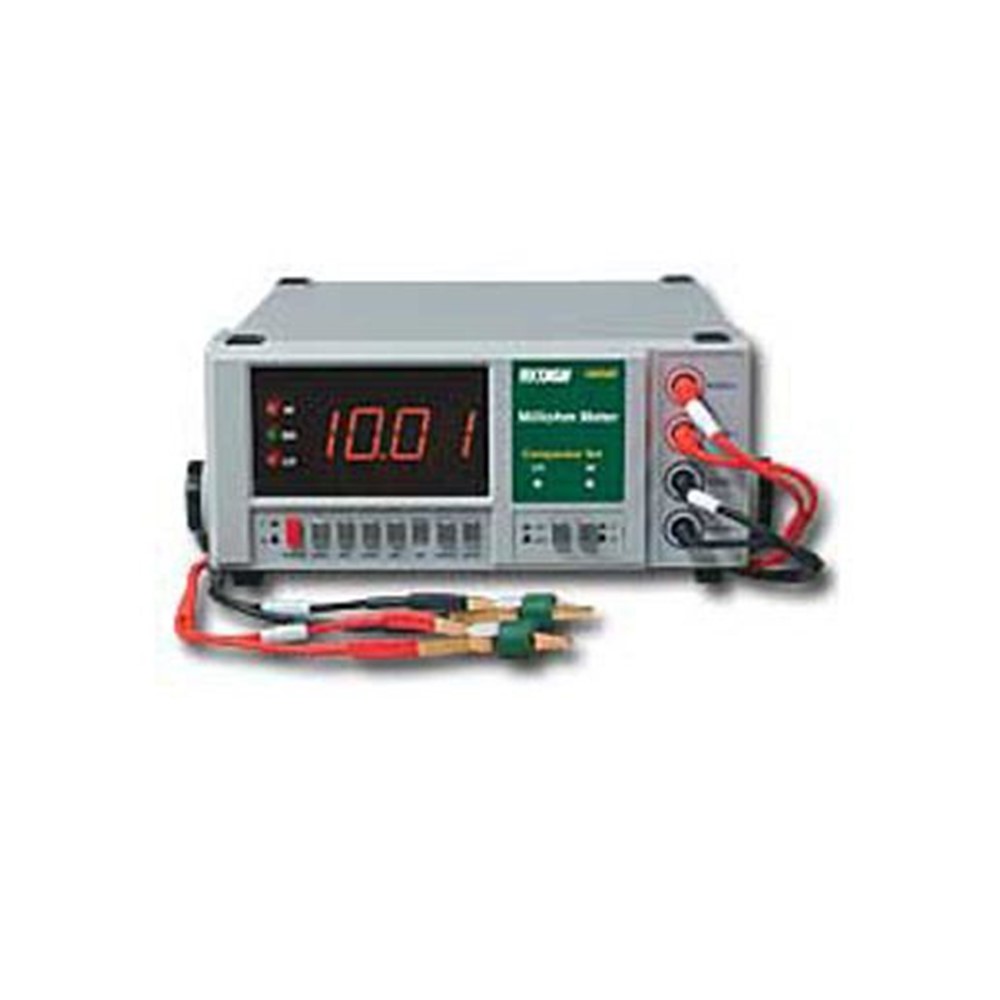

Extech High Resolution Precision Milliohm Meter
Description
he Extech High Resolution Milliohm Meter features 7 ranges for wide low resistance measurements. The benchtop meter provides resolution down to 0.01m using 4-wire kelvin clip test leads. A comparator is built in for high/low/go resistance testing. Model 380560 is 110VAC and model 380562 is 220VAC.
- Resistance range: 20m, 200m, 2, 20, 200, 2k, 20k
- Resistance resolution: 0.01m, 0.1m, 0.001, 0.01, 0.1, 0.001k, 0.1k
- Resistance accuracy: ±(0.2% + 6d), ±(0.2% + 4d)
- Power: 110VAC, 60Hz or 220VAC 50Hz
- Dimensions: 11 x 8.3 x 3.5″ (280 x 210 x 90mm)
- Weight: 4.85lb (2.2kg)
