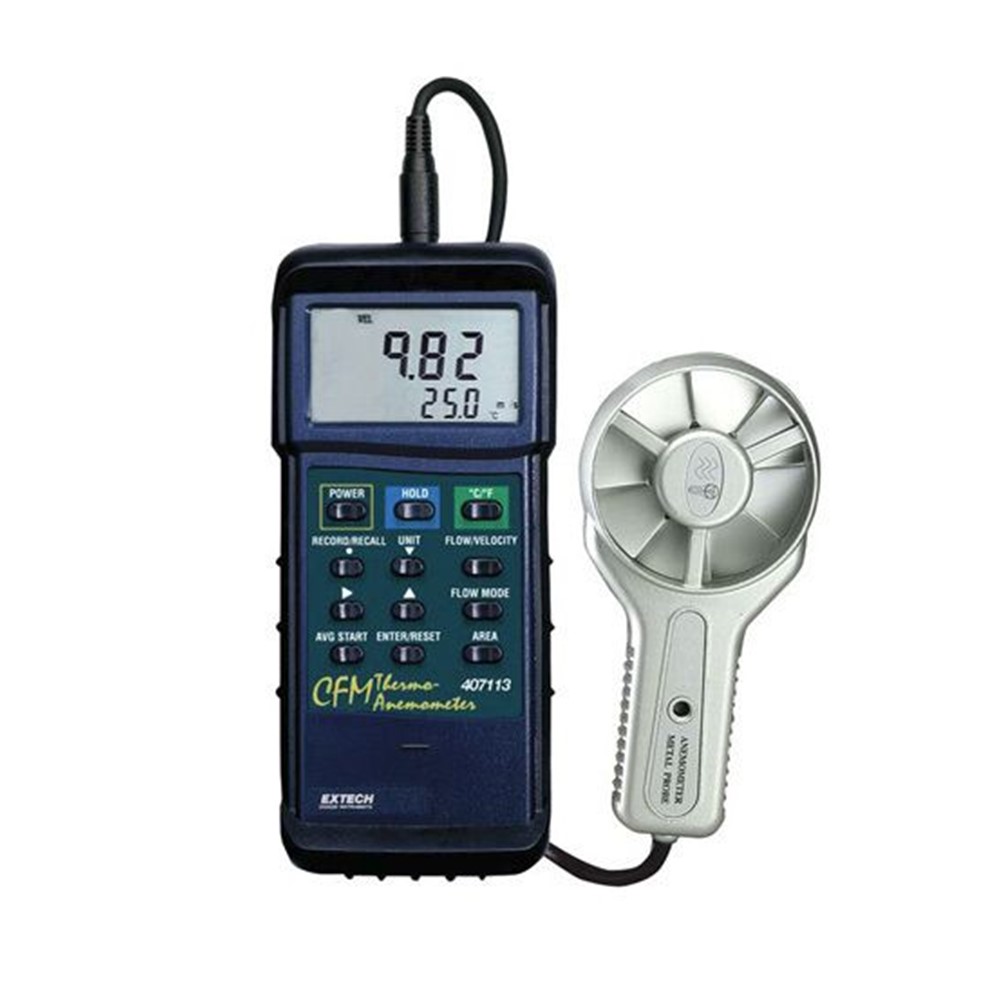

Extech Heavy Duty CFM Metal Vane Anemometer

The Extech Metal Vane Anemometer displays air flow (CFM) or air velocity and temperature simultaneously.

Features

  • Withstands temperatures to 175°F (80°C) and airspeed to 78.3MPH (6890ft/min)
  • Air flow displayed in 3 modes
  • Large (9999 count) LCD display
Category:

Description

The Extech Metal Vane Anemometer is a high temperature instrument that withstands termperatures to 75°F (80°C) and airspeed to 78.3MPH (6890ft/min). Air flow is displayed in three modes: instantaneous value, up to 20 point average, and 2/3 flow value. Readings are clearly read on the large (9999 count) LCD display. The meter is capable of freezing the data on the screen through the data hold function, and record or recall minimum and maximum readings. It has a built-in RS-232 PC serial interface to communicate with the optional Data Acquisition Software.

  • Air velocity (m/sec) range: 0.5 to 35m/s
  • Air velocity (m/sec) resolution: 0.01m/s
  • Air velocity (m/sec) basic accuracy: ±2%rdg
  • Air velocity (ft/min) range: 100 to 7880ft/min
  • Air velocity (ft/min) resolution: 1ft/min
  • Air velocity (ft/min) basic accuracy: ±2%rdg
  • Air velocity (MPH) range: 1.1 to 78.3MPH
  • Air velocity (MPH) resolution: 0.1MPH
  • Air velocity (MPH) basic accuracy: ±2%rdg
  • Air velocity (knots) range: 1.0 to 68knots
  • Air velocity (knots) resolution: 0.1knots
  • Air velocity (knots) basic accuracy: ±2%rdg
  • Air velocity (km/h) range: 1.8 to 126km/h
  • Air velocity (km/h) resolution: 0.1km/h
  • Air velocity (km/h) basic accuracy: ±2%rdg
  • Temperature range: 32 to 175°F (0 to 80°C)
  • Temperature resolution: 0.1°
  • Temperature basic accuracy: ±1.5°F (±0.8°C)
  • Aifrlow CFM range: 0 to 999,900CFM
  • Airflow CFM resolution: 0.001
  • Airflow CMM range: 0 to 999,900 CMM
  • Airflow CMM resolution: 0.001
  • Dimensions: 7 x2.9 x 1.3″ (178 x 74 x 33mm)
  • Weight: 1.6lbs (0.7kg)
