The Extech Digital Insulation Tester provides autoranging insulation measurements to 10G.
Features
- Automatic discharge of capacitive voltage charges
- AC/DC Voltage measurements up to 999V
- 250V, 500V and 1000V test voltages

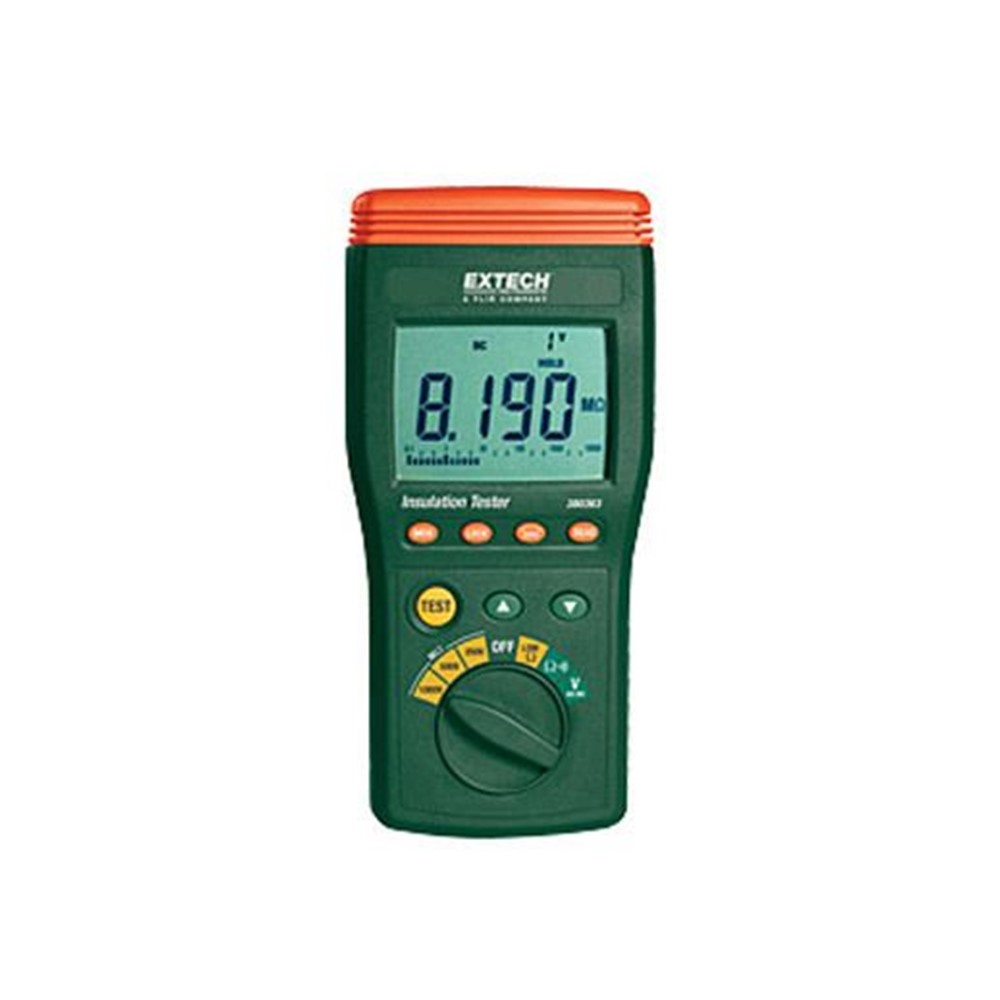

Extech Digital Insulation Tester
Description
The Extech Digital Insulation Tester provides autoranging insulation measurements to 10G plus manual datalogging stores up to 9 data sets. The tester has 250V, 500V, and 1000V test voltages and a low ohms function for testing connections. The instrument also has an automatic discharge of capacitative voltage charges, and AC/DC voltage measurements up to 999V.
- Insulation resistance: 4M , 40M , 400M , 4000M , 10G
- Max resolution: 1k
- Basic accuracy: ±3%
- Insulation test voltages: 250V, 500V, 1000V
- AC voltage test: Yes
- Low resistance test: Yes
- Power source: 6 x AA batteries
- Dimensions: 9.3 x 4.6 x 2.1″ (235 x 116 x 54mm)
- Weight: 1.15lbs (520g)
