The Extech Extech Battery Powered Millohm Meter provides 4 terminal kelvin measurements.
Features
- 5 ranges with 100μ max resolution
- Built-in water resistant case with shoulder strap
- Over-temperature and over-voltage protection

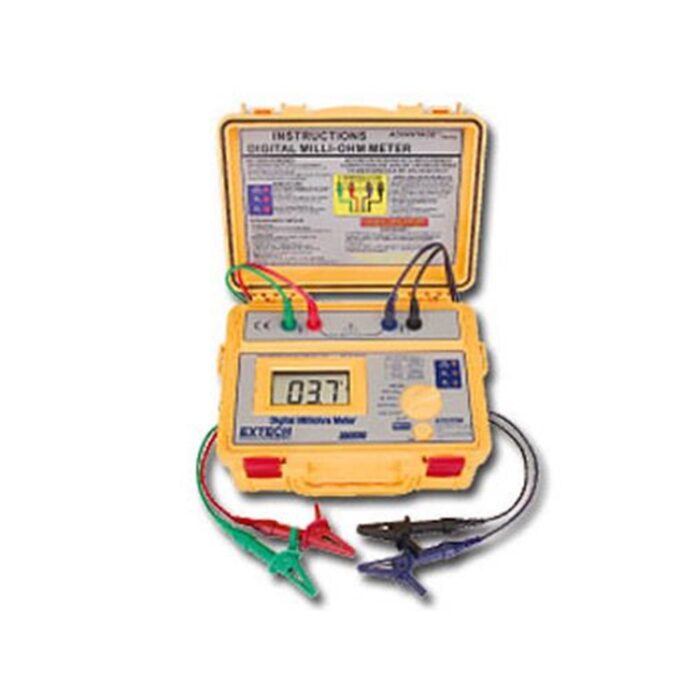

Extech Battery Powered Milliohm Meter
Description
The Extech Batter Powered Milliohm Meter is a high accuracy, high resolution portable milliohm meter that is battery operated for field use. It provides four terminal kelvin measurements, and 5 ranges with 100μ maximum resolution. Measurements are read on a large 2000 count LCD The meter over-temperature and over-voltage protection for user safety. The invalid test indicator prevents inaccurate measurements. The meter is enclosed in a water resistant case with shoulder strap.
- Resistance range: 200.0m, 2000m, 20.00, 200.0, 2000
- Resistance resolution: 0.1m, 1m, 0.01, 0.1, 1
- Resistance current: 100mA, 100mA, 10mA, 10mA, 1mA
- Resistance basic accuracy: ±(0.5%rdg +2 digits)
- Power: 8 AA batteries
- Dimensions: 9.8 x 7.5 x 4.3″ (250 x 190 x 110mm)
- Weight: 3.3lbs (1.5kg)
