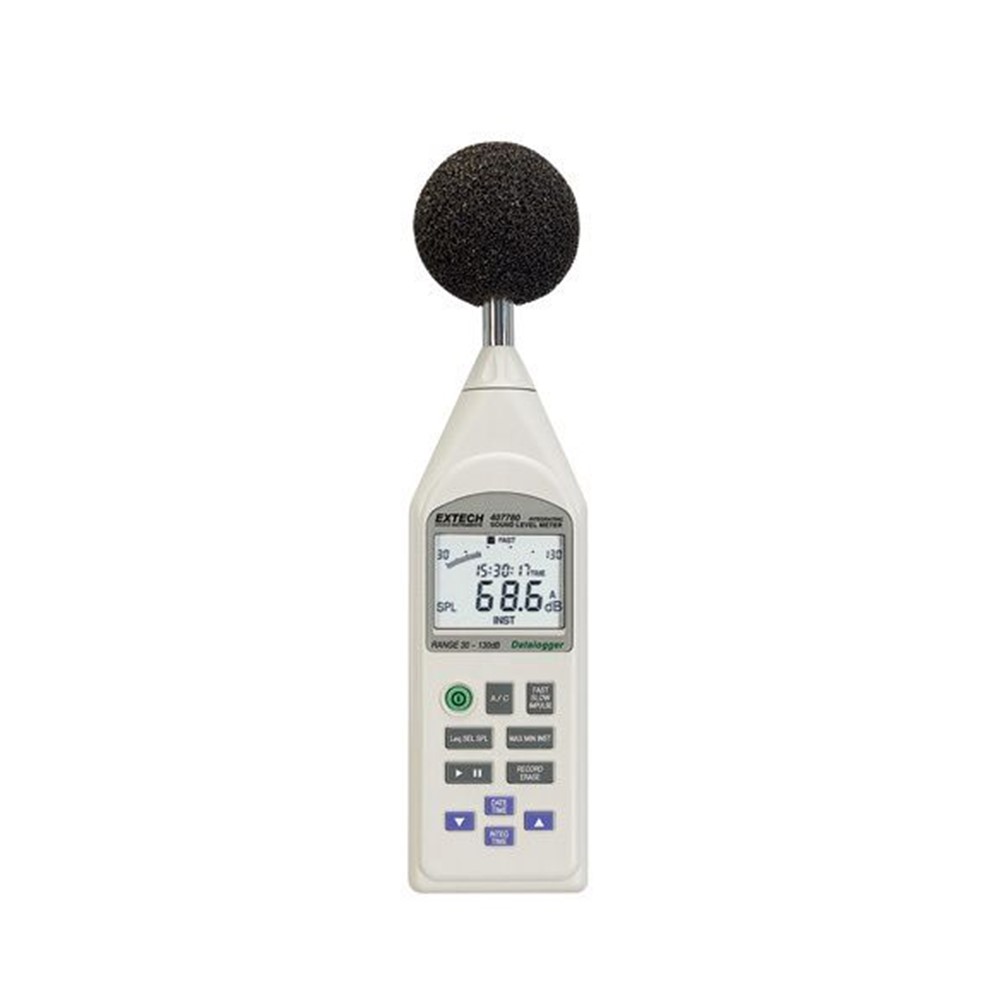

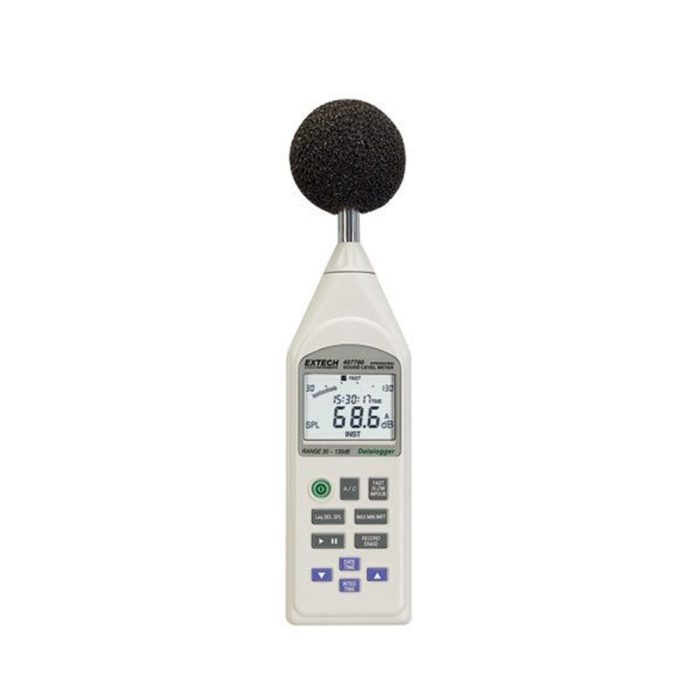

Extech 407780A Integrating Sound Level Datalogger

The Extech Integrating Sound Level Meter takes Leq and SEL measurements with a built-in data logger and PC interface.
Features
  • Precise linearity over wide range (100dB)
  • Data logging function can record up to 32,000 records
  • Programmable integrating time
Category:

Description

  • 4-digit multifunction LCD with analog bargraph
  • Precise linearity over wide range (100dB)
  • Display modes: SPL, SPL MIN/MAX, SEL, and Leq
  • Programmable integrating time
  • A and C Frequency weighting
  • Impulse/Fast/Slow response settings
  • Datalogging function records up to 32,000 records
  • Real time calendar/clock
  • Analog and alarm output features can be used to connect with Frequency analyzers, chart recorders, external dataloggers, and sound level alarms
  • Built-in USB interface with included Windows® datalogging software
  • Tripod mount
  • Meets IEC 61672-1, 60651/60804 Type 2 and ANSI S1.4 Type 2 specifi cations
  • Complete with windscreen, adjustment screwdriver, USB cable, Windows® compatible software, battery, and case
