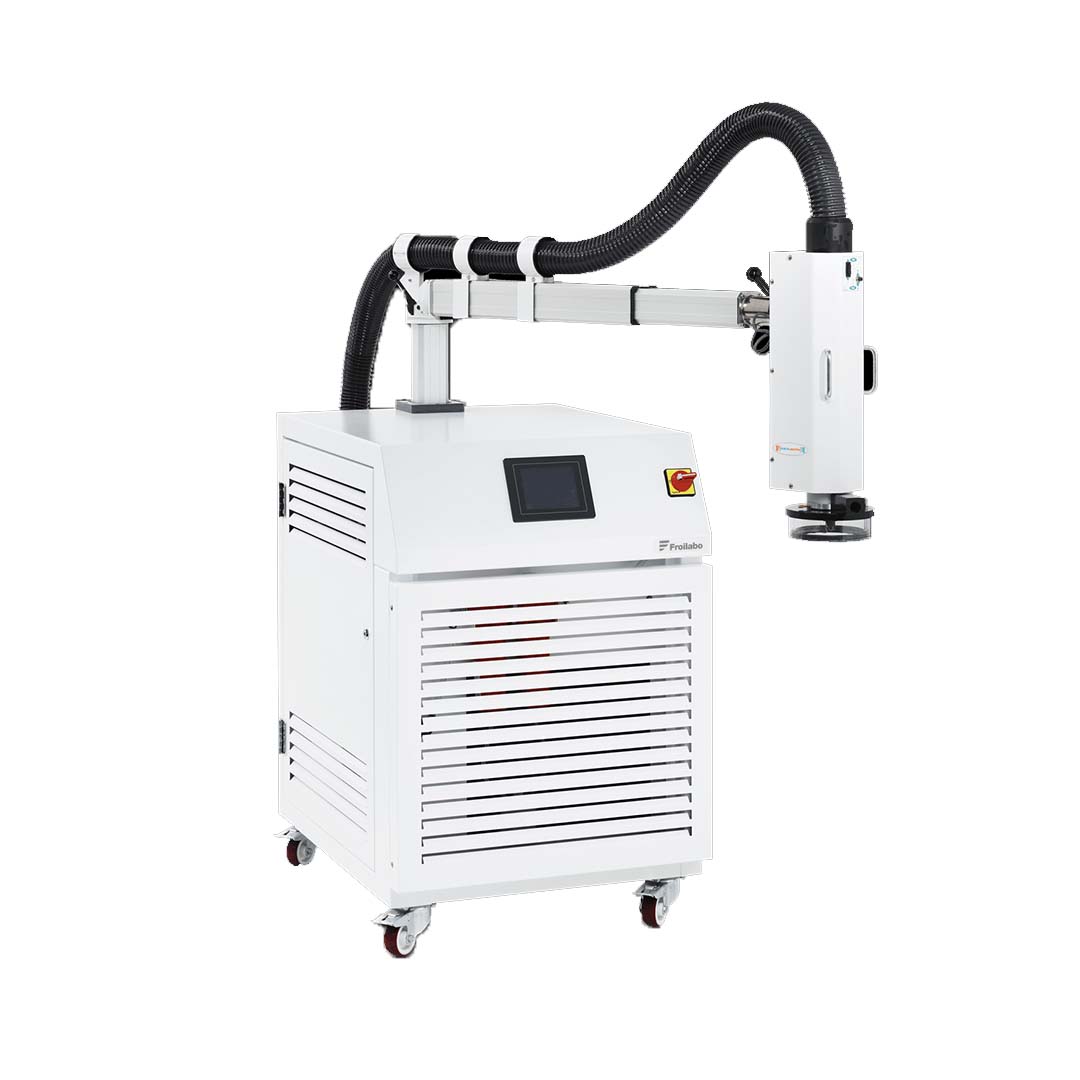

Dragon

Description

Superior temperature control

• Operate between -72 °C and +250 °C with adjustable dry airflow up to 8.4 L/s and excellent thermal stability <+/-0.1°C.
• Use for 24 hours a day, 7 days a week and is capable of rapid temperature rise and fall from -55 °C to +125 °C in 7 seconds and from +125 °C to -55 °C in 14 seconds.
• At the end of a test campaign, the system blows dry air into the workspace to prepare it for the next campaign.

Plug and play technology

• There is no requirement for LN₂ or CO₂.
• The guide handle and the 4 swivel castors (with brakes) make it very easy to move the Dragon into location for testing and the 4-axis steerable motorised arm and head can adapt to your needs.
• The large password-protected touch screen gives access to the 2 working modes: manual or programmable, to consult and modify the 23 adaptable temperature cycles (48 steps each).
• The Dragon is equipped with an RS232 as standard, Board IEEE / 488.2 / GPIB is available for a perfect integration with your other systems.

Fully customisable temperature forcing system

The Dragon is a versatile system in its standard form and may also be customised on request. Please talk to us about your unique requirements, or see our list of common customisations:

• Borosilicate bell
• GPIB Interface
• Footswitch (IEEE)
• ESD Kit
• Nozzle
• Custom Silicone Plates
• Customized special boxes
• Different types of thermocouples
