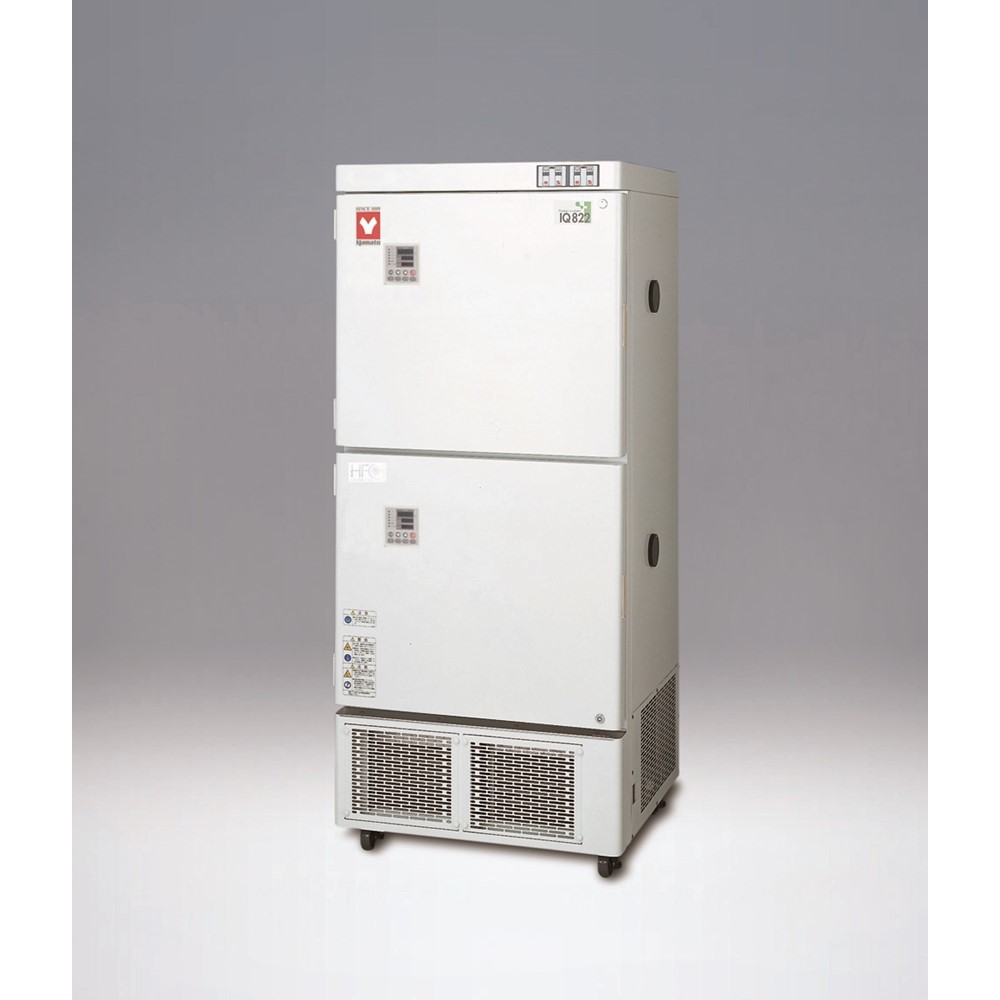

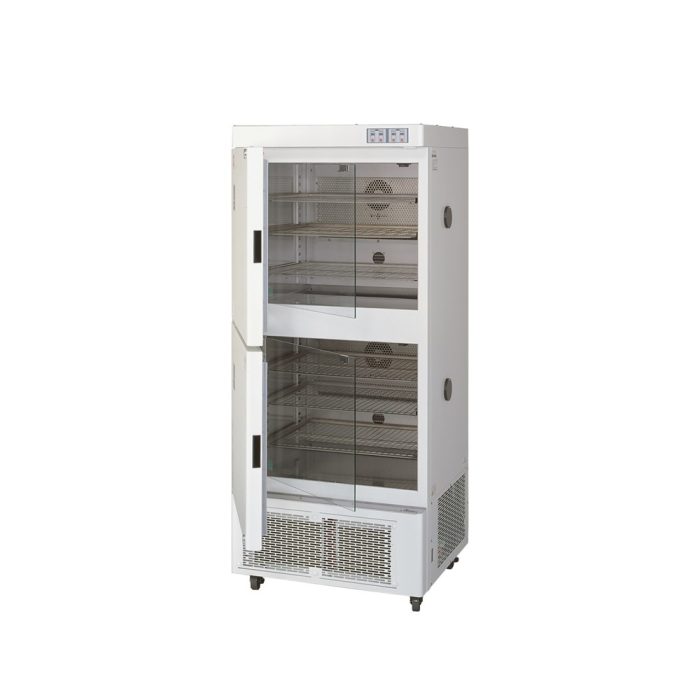

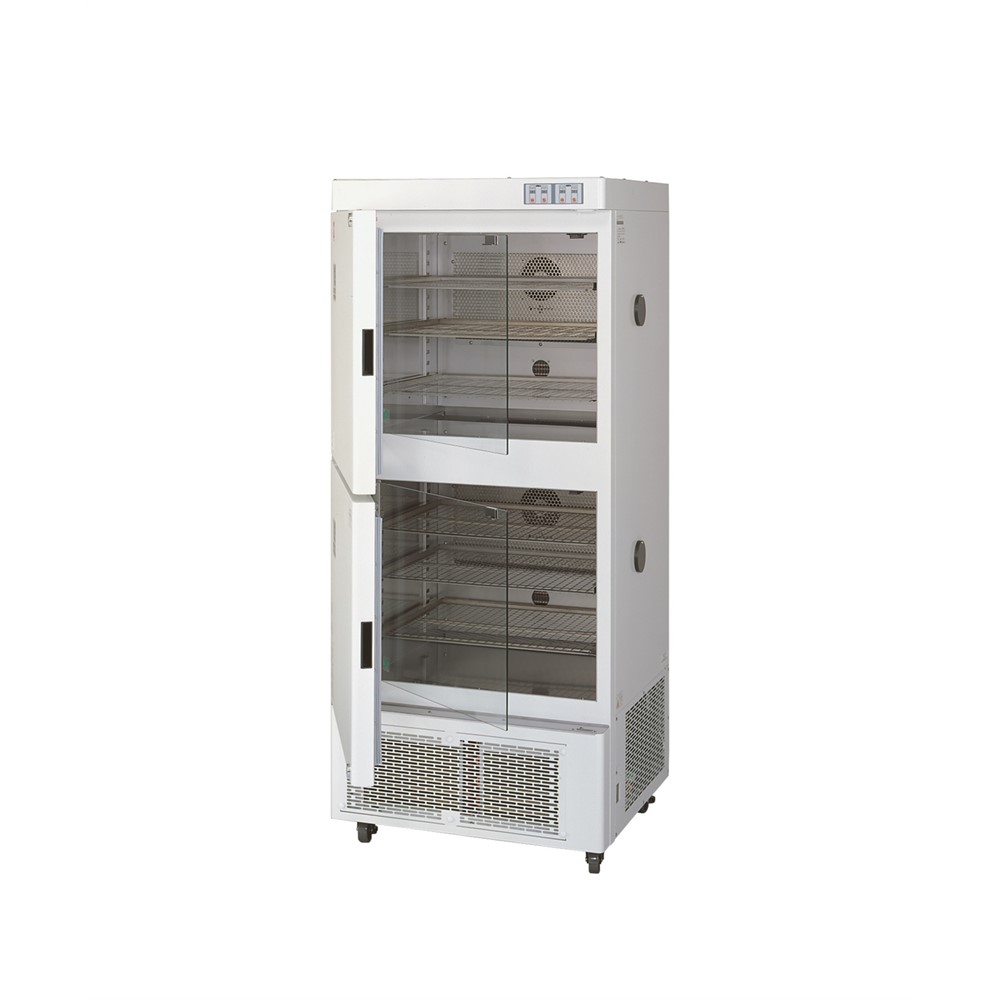

Double Chamber Low Temperature Incubator and each chamber is programmable individually
Features of Double Chamber Incubator (Low Temp.) (IQ822)
Double Chamber Incubator (Low Temp.) (IQ822)
Description
Double Chamber Low Temperature Incubator
Control panel on the door makes operation easier.
Feature
Six programs can be registered from 30 to 10 steps according to specific tests including incubation – storage process.
Feature
Simple pressing of the special button allows setting of the manual defrosting operation in addition to cycle defrosting operation (Fixed).
Feature
Large cable port of I.D. 50 mm on each chamber
Feature
Comprehensive safety functions including self diagnostic function, Key lock function, electric leakage breaker with over current protection, overheat preventive device.
| Model | IQ822 |
|---|---|
| System | Forced Convection |
| Operating Temperature Range | -10～+50℃ |
| Temperature Adjustment Accuracy | ±0.3℃(During continuous refrigeration for both upper and lower chamber) |
| Temperature Distribution Accoracy | ±1.0℃(at 37℃ during continuous refrigeration for both upper and lower chamber) |
| Time to reach the Max. Temp. | 20～+50℃：Approx. 25min. |
| Time to reach the Lowest Temp. | 20～-10℃：Approx. 45min. |
| Interior | Stainless steel |
| Exterior | Chrome-free electronic galvanized plated steel plate chemical-proof baking finish |
| Refrigerant | R404A |
| Defrost operation | Manual defrost (Manual ON/ Auto OFF), Cycle Defrost |
| Sensor | Pt100Ω(Temperature controller), K-thermocouple(Overheat prevention device) |
| Cable Port | 50mm ID（Right side from the front for upper and lower chamber） |
| Temperature Control | PID control |
| Temperature Setting | Digital setting method by ▲▼ key with the dedicated select key |
| Temperature Display | Setting temperature: Green LED digital display, Actual temperature: 4-digit red LED digital display |
| Timer | 1min.～99hrs. 59min. or 100～999hrs. 50min.（Timer wait function） |
| Operation Function | Fixed, program(Max. 30 steps, 3 pattern）Auto start, Auto stop、クイックオートストップ |
| Additional Functions | Calibration off-set function, Blackout recovery function |
| Safety Funcitions | Self-diagnostic functions (Memory error, Abnormal temp. sensor, heater disconnection, SSR short circuit, Automatic overheat preventive function), Key lock, Over-current ELB, Overheat preventor |
| Shelf Loading Capacity | 15kg / shelf |
| Shelf Step / Pitch | 13 steps ×2 chambers / 30mm |
| Shelf / Support | Stainless steel punching metal, 3 shelves x 2 chambers / 6pcs.× 2 chambers |
| Door Lock Key | 2 pcs. / each chamber |
| Internal dimensions（W×D×H mm） | 600×477×500mm |
| External dimensions（W×D×H mm） | 710×645×1675mm |
| Remarks(dimensions) | 143L × 2 chambers |
| Power Source | AC220V Single-phase with step down transformer |
| Weight | 165kg |
