Efficiently traps water vapor and toxic substances discharged from vacuum oven and rotary evaporator to protect the vacuum pump.
Features of Cold Trap (CA801)

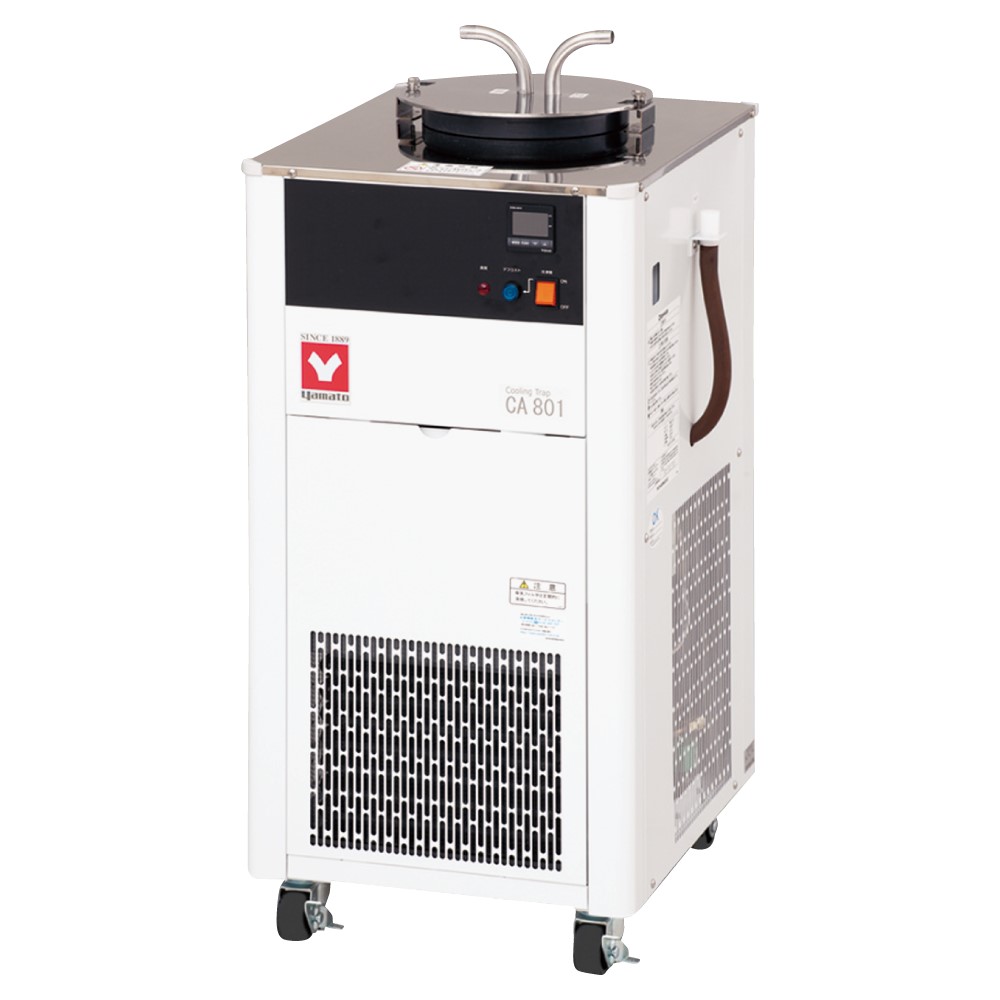

Cold Trap (CA801)
Description
- Features
- Excellent choice to extract acid and organic solvents with the optional glass condenser.
- Features
- Efficiently reduces vapor inhalation amount to the vacuum pump.
- Features
- Can be used as a low temperature tank as well as pre-cooling tank.
- Features
- Utilizes R404A (CA301) and R600a and mixed coolants (CA801)
- Features
- Space saving and highly mobile on wheels
| Model | CA801 |
|---|---|
| Accessories | Casters fixing holder×4 |
| Method | Direct trap or Glass trap (optional) |
| Dehumidifying capacity | Max. 1.0kg(Water type liquid) |
| Max. low temperature | -85℃ |
| Refrigerator | Air cooling, 350W |
| Refrigerant | R600a and other mixed coolant |
| Cooling coil | Installed at tank periphery |
| Lid | SUS304, with nozzle (OD ø17.6mm) |
| Bath shape / material | Cylindrical / SUS304 |
| Ambient temp. range | 5 to 30℃ |
| Temperature display | 7 segment LED |
| Temperature sensor | Platinum resistance temperature detector Pt100Ω |
| Defrosting mechanism | Hot gas bypass system |
| Safety device | Electric leakage breaker with over current protection, Refrigeration overload relay, Refrigerator delay timer, Refrigerator high voltage error, Sensor disconnection error |
| Sink dimensions | I.D.153×H235mm |
| External dimensions（W×D×H mm） | 405×500×850mm |
| Remarks(dimensions) | Internal capacity : Approx. 4L (Liquid 3L) |
| Power Source | AC115V/AC220V Single phase with step-down transformer |
| Weight | 65kg |
