Efficiently traps water vapor and toxic substances discharged from vacuum oven and rotary evaporator to protect the vacuum pump.
Features of Cold Trap (CA301)

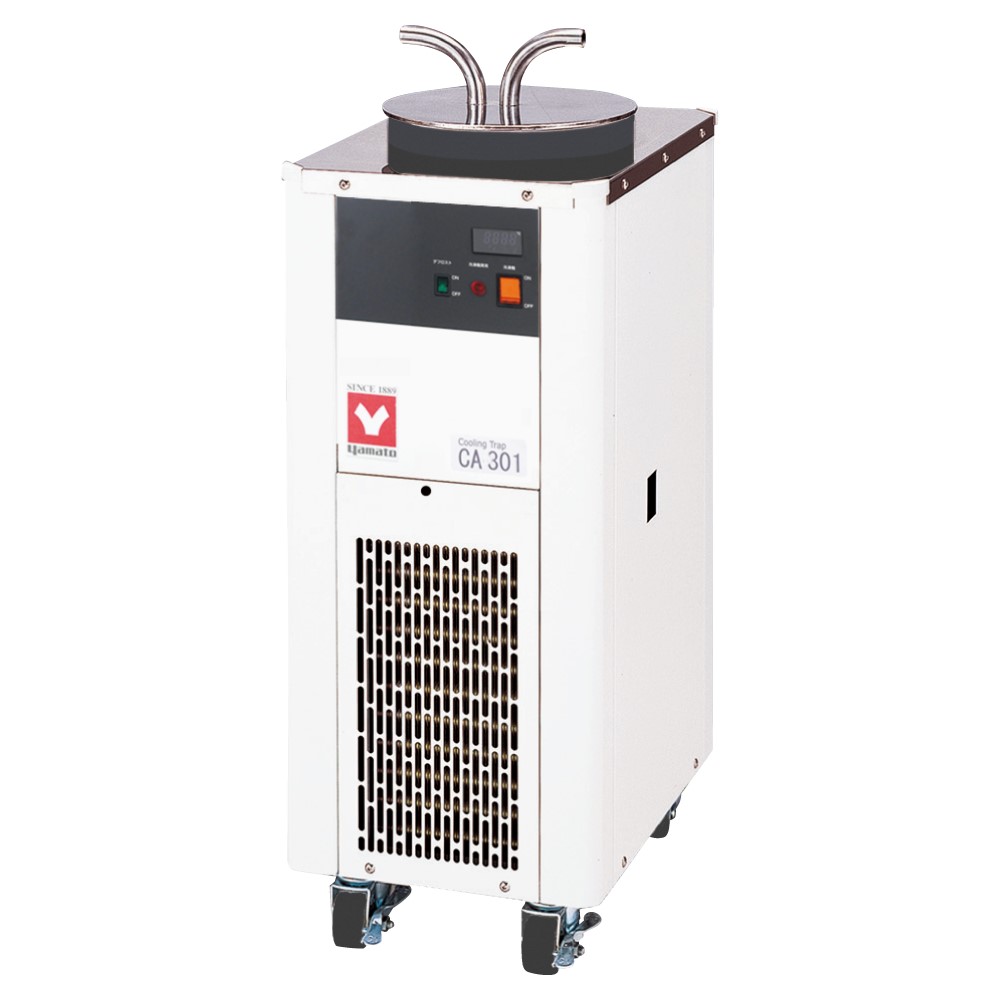

Cold Trap (CA301)
Description
Features
Excellent choice to extract acid and organic solvents with the optional glass condenser.
Features
Efficiently reduces vapor inhalation amount to the vacuum pump.
Features
Can be used as a low temperature tank as well as pre-cooling tank.
Features
Utilizes R404A (CA301) and R600a and mixed coolants (CA801)
Features
Space saving and highly mobile on wheels
| Model | CA301 |
|---|---|
| Accessories | ― |
| Method | Direct trap or Glass trap (optional) |
| Dehumidifying capacity | Max. 0.9kg(Water type liquid) |
| Max. low temperature | -45℃ |
| Refrigerator | Air cooling, 400W |
| Refrigerant | R404A |
| Cooling coil | ID ø90mm SUS304 |
| Lid | SUS304, with nozzle (OD ø17.6mm) |
| Bath shape / material | Cylindrical / SUS304 |
| Ambient temp. range | 5 to 35℃ |
| Temperature display | 7 segment LED |
| Temperature sensor | Platinum resistance temperature detector Pt100Ω |
| Defrosting mechanism | N/A |
| Safety device | Electric leakage breaker with over current protection, Refrigeration overload relay |
| Sink dimensions | I.D.153×H235mm |
| External dimensions（W×D×H mm） | 345×475×726mm |
| Remarks(dimensions) | Internal capacity : Approx. 4L (Liquid 3L) |
| Power Source | AC115V/AC220V Single phase with step-down transformer |
| Weight | 47kg |
