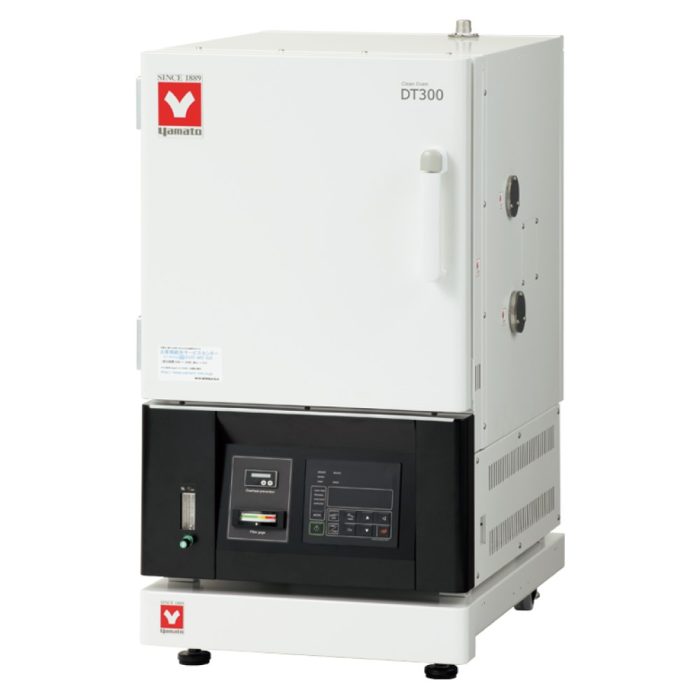

Clean Oven (with Heat-resistant HEPA) (DT300)

High-performance type (Model:DT300H), which prevent the production of fine dust when the working temp. is stable, as well as when the temperature is going up or down.

Features of Clean Oven (with Heat-resistant HEPA) (DT300)

Description

Features

DT300 can maintain the cleanliness class 100 when the temperature is stable at 300oC.

Features

DT300H can maintain the cleanliness class 100 in all heating conditions (stable, increase, decrease).

Features

Program operation (Max.99 steps, 99 patterns, repeat operation) is available.

Features

Safety measures are enriched, including self-diagnosis function and an independent overheating prevention device.

Model DT300
Method Forced air circulation
Operating temp. range Room temp. +20°C to 300°C
Temp. control accuracy (JTM K05) ±0.3℃(at 100℃, 200℃, 300℃)
Temp. fluctuation (JIS) 1.0°C (at 100 / 200°C) , 2.0°C (at 300°C)
Temp. distribution accuracy (JTM K05) JTM K05 ±2.0℃(at100℃)、±4.0℃(at200℃、300℃)
Temp. gradient (JIS) JIS 5℃(at100℃)、10℃(at200℃)、12℃(at300℃)
Max. temp. reaching time Approx. 150 min.
Clean level Class 100 (when the temp. is stable)
Interior material Stainless steel
Heat insulating material Glass wool
Heater Stainless pipe heater, 1.2kW
Fan type Sirocco fan, Condenser type motor
Differential pressure meter Indicator type (tricolor)
Cable port 33 mm I.D. (right side)
Air in-take port 33 mm I.D. (right side)
Exhaust port 16 mm I.D. (R1/2, top side)
Filter Heat resistant HEPA filter (dust collect : more than 99.97% at 0.3μm )
Temp. controller PID control by micro processor
Temp. setting method Digital setting with UP/DOWN key
Temp display method Digital display
Other display Operation monitor (operation condition graphic display by LED patterns)
Timer 1 min. to 99 Hrs. 59 min
Operation function Fixed temp., Auto-start, Auto-stop, Quick auto stop, program (Max.99 steps, 99 patterns, repeat)
Additional functions Calendar timer (max. 24 hrs.), Integration time (max. 65535hrs.), Clock, Calibration off-set,
Additional functions Display the amount of Power consumption / CO2 discharge / Heater operation amount, Power failure recovery mode, User setting information save and recall
Heater circuit control Triac zero-cross control
Temp. sensor K-thermocouple (double sensor)
Safety countermeasures Self diagnosis functions (Sensor, Fan, Heater, Relay, Triac, Automatic overheat prevention),
Safety countermeasures Independent overheat prevention, Key lock function, Electric leakage breaker, Door switch
Shelf loading Approx. 15 kg / pc
Shelf support step number/pitch 6 steps / 30mm
Accessories Shelf plate Stainless wire shelf
Accessories Shelf / Shelf support 2 pcs / 4 pcs
Internal dimensions(W×D×H mm) 300×300×300mm
External dimensions(W×D×H mm) 500×720×840mm
Remarks(dimensions) 27L
Power Source AC220V 6A
Single-phase with step-down transformer
Weight 87kg
