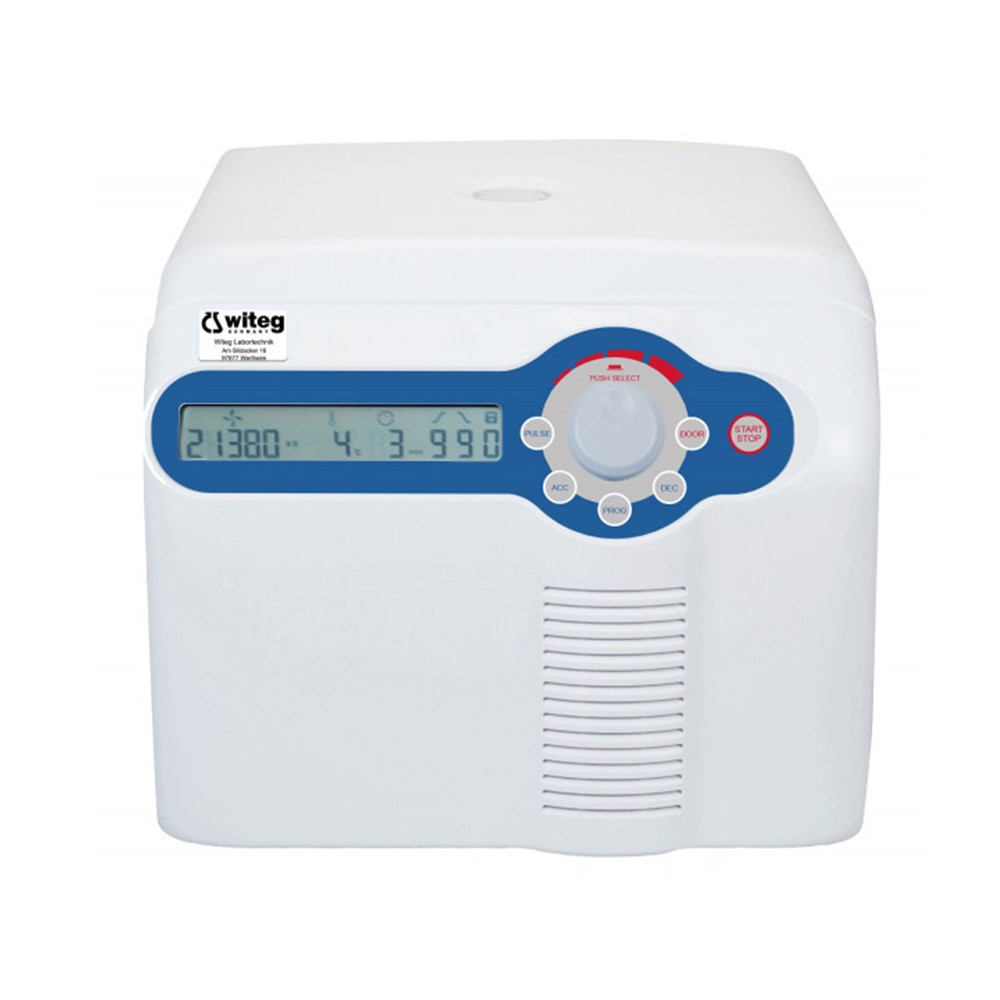

CF15000R high-speed refrigerated centrifuge, -20°C to +40°C

Suitable for:

  • Centrifuging temperature-sensitive samples such as living cells, animals or proteins
  • can be used for multiple applications, e.g.:
    • Pelleting of DNA and RNA samples
    • Pelleting PCR Amplified Nucleic Acids
    • Separation of antibody and protein deposits
    • Conducting enzymatic tests
    • Removal of cell debris from cell homogenates
    • Achieving fractionation of bacterial and yeast cells

Description

Technical features:

  • electromagnetic door locking system; easy closing
  • Pre-cooling: Compressor will automatically cool when the set temperature is lower than the ambient temperature
  • acoustic signal at the end of the running time
  • Temperature range from -20°C to +40°C
  • Short pre-cooling time: only 7 minutes from room temperature to 4°C
  • Storage capacity for up to 9 programs
  • 3-layer sealed rotors ensure safe centrifugation
  • High-strength aluminum alloy rotor, fully autoclavable at 121°C
  • acceleration/deceleration in 9 steps; smooth deceleration at low speed for better separation
  • five rotors with 0.2mL, 0.5mL, 1.5mL, 2mL and 5mL centrifuge tubes/PCR tubes capacity
  • External condensate container prevents water accumulation in the centrifuge area
  • brushless DC motor
  • Speed/RCF switchover
  • jog mode
  • running process display
  • warning sound function
  • program storage capacity
  • CE cTUVus FCC certified

Safety device:

  • Rotor imbalance detection alarm
  • double door locking system
  • overspeed detection
  • Overtemperature detection with internal diagnostic system

Centrifuge CF15000R, rotor for 24 x 1.5/2 ml reaction tubes

execution

Max. RCF 21,380xg, adjustable in 10xg increments

Autoclavable

Rotor fully autoclavable

width (outside)

553mm

length (outside)

332mm

height (outside)

283mm

material

High-strength aluminum alloy rotor

power supply

Single phase, 200V-240V, 50Hz/60Hz, 500W 100V-120V, 50Hz/60Hz, 500W

speed

15,000 rpm (200-15,000 rpm), adjustable in 100 rpm increments Acceleration/deceleration time: 25s ↑ 25s ↓

capacity

24×1.5/2ml, 36×0.5ml, PCR 8×4, 12x5ml, 18x5ml

rotor

supplied rotor for 24 x 1.5/2 ml reaction tubes

temperature range

-20°C to +40°C
