Suitable for:
- Ingestion of evaporative or hazardous vapors from vacuum lines

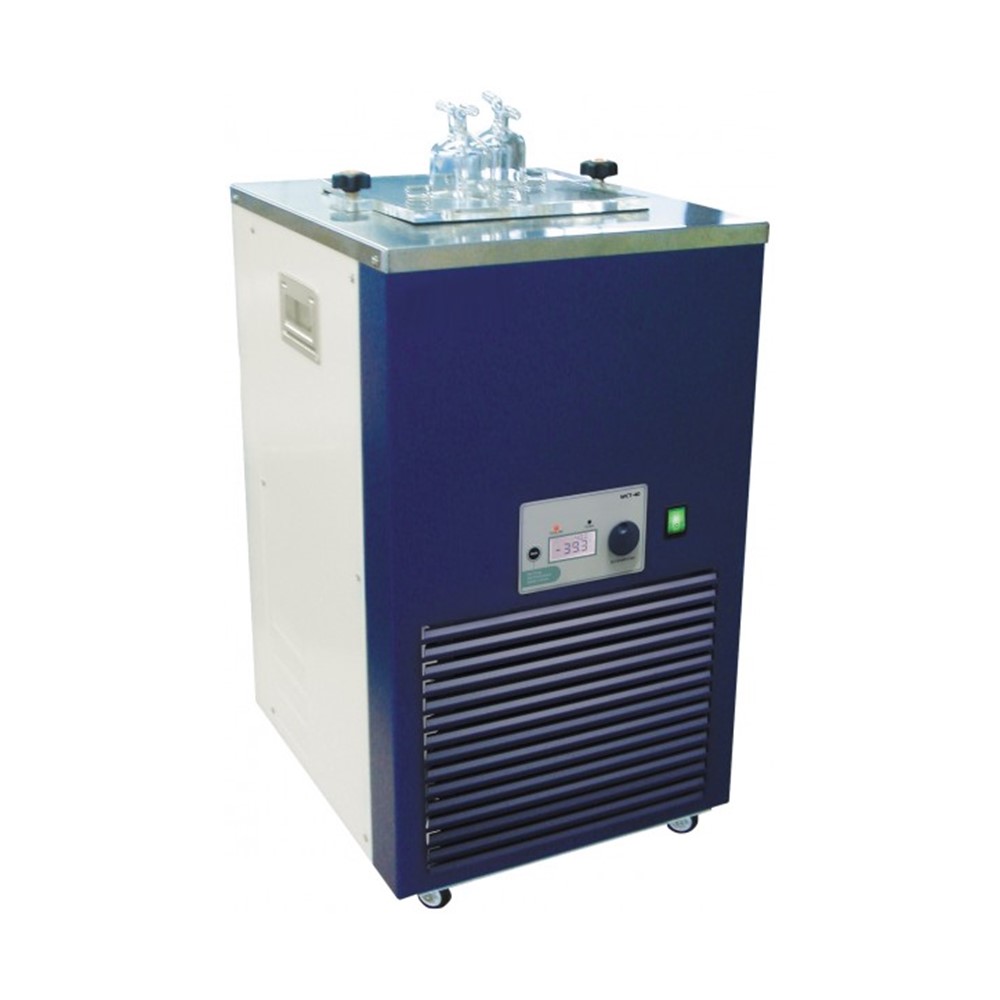

Baths WCT cold trap 10 liters -40°C/-80°C
Description
Technical features:
- Stainless steel bathroom
- powder coated steel, double painted and stoved, 20mm polyurethane insulation
- digital timer: control of start-up delay and operating time
- Adjustment function for adjusting the displayed temperature to the actual temperature
- drain valve installed
- Backlit LCD display
- CE certificate and traceability through serial numbers
- IQ/OQ available
Safety device:
- lockdown mode
- overcurrent protection
- Sensor error detection and residual current circuit breaker
Steering:
- digital PID control with jog shuttle switch (turn + press)
WCT cold trap, 2 glass cold traps, power cable, operating instructions
features
Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.
execution
2 glass cold traps
width (inside)
220mm
length (inside)
220mm
height (inside)
210mm
width (outside)
377mm
length (outside)
453mm
height (outside)
705mm
suitable / suitable for
Ingestion of evaporative or hazardous vapors from vacuum lines
capacity
10L
coolant
R-404A (CFC-free)
temperature range
-20°C down to -40°C
packaging size
560x550x1010mm
cooling device
370W
