Axial Fan Training System Hydrodynamics Lab Educational Equipment

Description

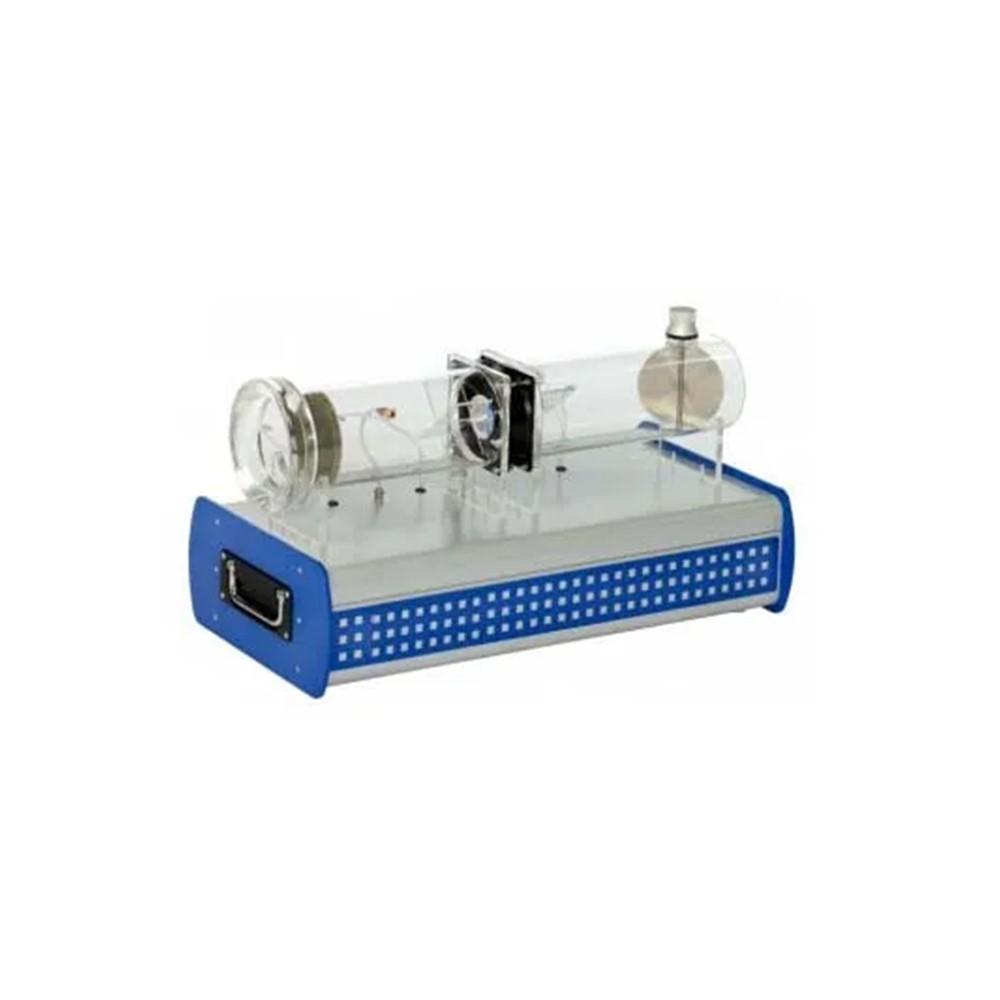

MR1040 Axial Fan Training System Hydrodynamics Lab Educational Equipment

The System Should Cover the Following Training Objectives:
Investigation of operating behavior and characteristic variables of an axial fan
Study of fan characteristic and recording them: differential pressure as a function of the flow rate
Influence of the rotor speed on the pressure
Influence of the rotor speed on the flow rate
Study of stall
Determination of hydraulically power output and efficiencies
Minimum Technical Specifications Required (like or better than):
Transparent intake pipe with inner diameter: 105mm and length: 270mm
Transparent delivery pipe with inner diameter: 105mm and length: 300mm

Axial fan with power consumption: 90W, nominal speed: 9450rpm, maximum volumetric flow rate: about 600m3/h and maximum pressure difference: about 700Pa
Should include a throttle valve installed within the delivery pipe
Intake nozzle
Integrated microprocessor-based instrumentation
Should require no additional devices with error-prone wiring
Guide plates for flow guidance
Should include a flow straightener
2x handles

Differential pressure measuring range: 0 to 1750Pa
Flow rate measuring range: 0 to 1000m3/h
Temperature measuring range: 0 to 100°C
Speed measuring range: 0 to 9999rpm
Power consumption measuring range: 0 to 490W
Data acquisition unit with software with control functions
USB interface
PC Core i7, DVD+/-RW, 8GB RAM, 1TB Hard Disk Drive, Optical Mouse, Multimedia Keyboard, Monitor (21″) LED
