Suitable for:
- Biotechnology, Clinics, Environment, Medicine and Food Industry

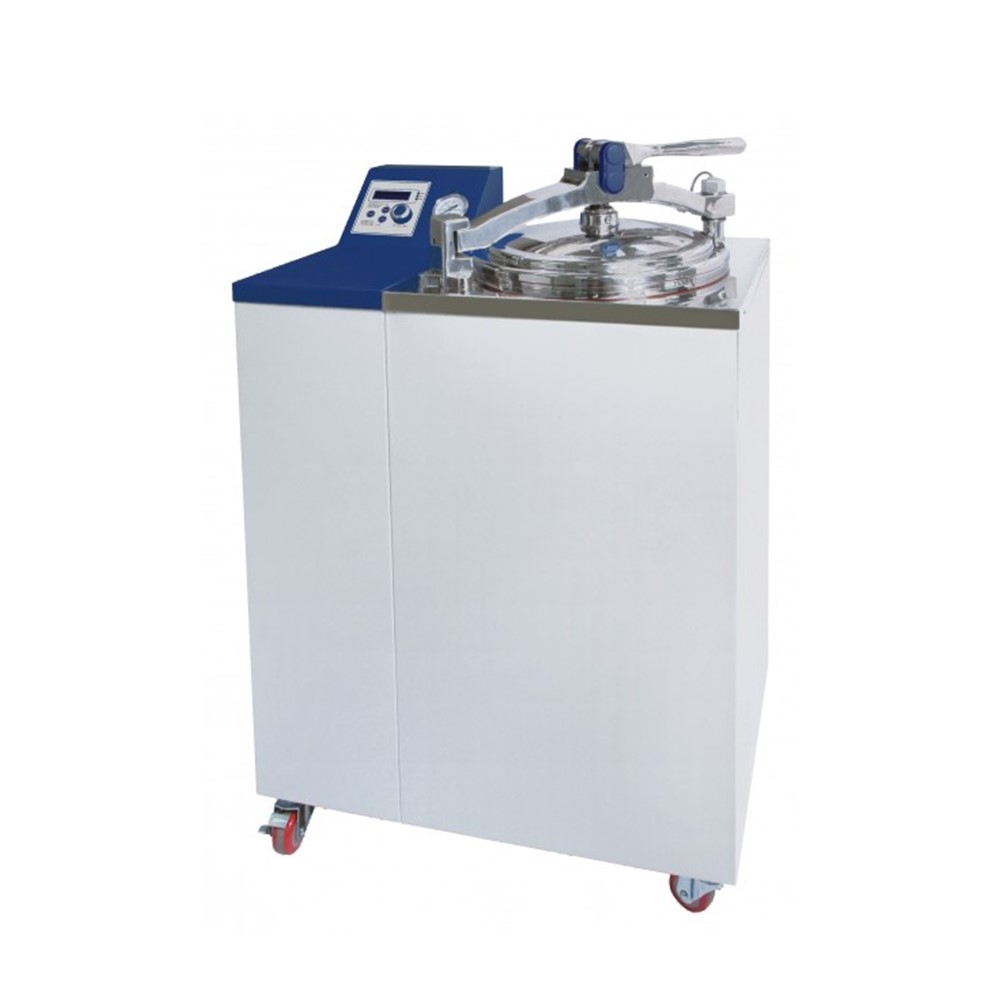

Autoclave / steam sterilizer WAC-47/60/80 liters 121°C including wire basket
Description
Technical features:
- Stainless steel wire basket (2 pcs included) and pressure vessel
- powder-coated steel housing
- Top-loading sterilizer for easy loading of large work volumes
- Thermal printer (paper roll B58/ Ø 40 mm) (WAC-R)
- Solid and liquid mode
- Casters for easy moving
- Sliding door with lever/electronic safety lock
- digital LCD display with backlight
- digital timer – start-up delay and operating time can be set
- integrated recorder: print sterilization data (WAC-R only)
- CE certificate and traceability through serial numbers
Safety device:
- Overheat and overcurrent protection
- automatic pressure relief valve & heat protection cover
- Error alarm, power failure and temperature error
- detects too low water level
- Electronic safety lock (door locked > 80°C)
Steering:
- digital fuzzy control (fully automatic)
Autoclave WAC/WAC-R, 2 wire baskets, built-in thermal printer, power cord, instruction manual
features
Electronic safety door lock: The sterilization cycle does not start until the door is locked. The electromechanical sensor, magnetic latch and “Open” button create a perfect security door that can only be opened when the temperature and pressure inside the pressure vessel has dropped to a safe level.
Special Steam Condensation Mechanism: The hot steam generated during the sterilization cycle is not released directly. At the end of the sterilization cycle, it is condensed into a small amount of water by a special condensation mechanism. This protects the user from dangerously high temperatures.
Lever Sliding Door: Opening and closing the autoclave door is smooth and easy due to the lever sliding door.
Liquid & Solid Cycle: Choice of liquid or solid mode operation. In liquid mode, the temperature decreases very slowly and the vapor is released step by step. During the solid state mode, the temperature is reduced very quickly and the vapor is released immediately.
Recorder stores sterilization cycle data: The WAC-R models come with an integrated recorder that allows analysis of temperature, pressure, time and error messages during the sterilization process.
PED (pressure equipment directive) certification
Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.
execution
Sliding door with lever/ electronic safety lock, PED (pressure equipment directive) certification
height (inside)
670mm
diameter (inside)
Ø300mm
width (outside)
700mm
length (outside)
470mm
height (outside)
1080mm
suitable / suitable for
Biotechnology, clinics, environmental, medical and food industries
1.2 kgf/ cm2 at 121°C / 2.0 kgf/ cm2 at 132°C, display: 0 – 3 kgf/ cm2
heating capacity
2000W
capacity
47L
Basket
Ø270x240mm
temperature range
Room temperature + 5°C to 132°C
temperature accuracy
±0.5°C at 121°C
packaging size
700 x 470 x 1,080mm
