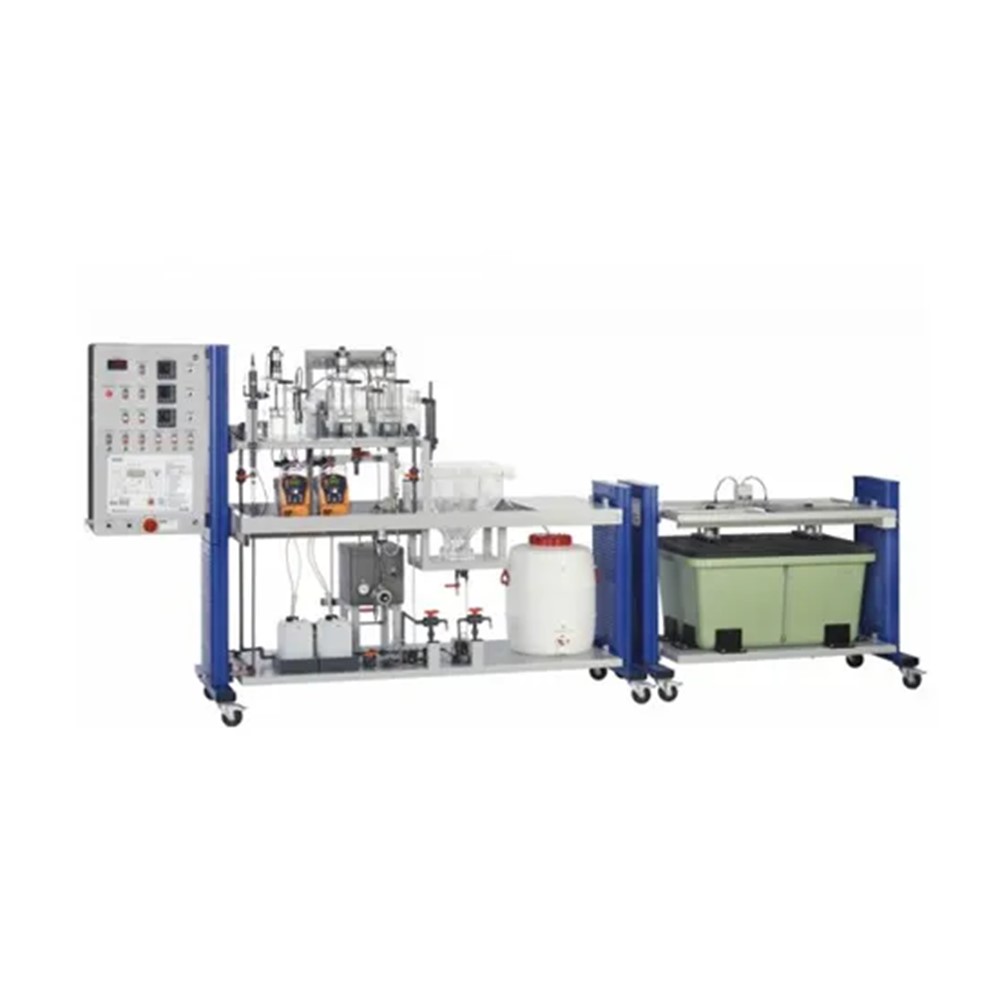

Aerobic Water Purification Pilot Plant Teaching Equipment Educational Equipment Sewage Treatment Trainer

Description

Aerobic Water Purification Pilot Plant Teaching Equipment Educational Equipment Sewage Treatment Trainer

The activated sludge pilot plant consists of an oxidation reactor and of a settler according to the traditional diagram of single stage sewage treatment process.
Biomass is oxidized in a reactor with agitator by the air blown by a compressor. The processed liquid is sent to the settler through an overflow. The sludges settling at settler bottom are recycled by a recycle pump into the oxidation tank.
• Framework of AISI 304 stainless steel with castors
• Feed tank with capacity of 300 l
• Cylindrical oxidation reactor of AISI 304 stainless steel, with capacity of 60 l, including an inspection window of transparent methacrylate and three overflows at different heights to vary reactor volume

• Agitator of AISI 304 stainless steel with geared motor
• Settler of AISI 304 stainless steel, with capacity of 30 l,provided with inspection window of transparent methacrylate
• 2 magnetic drive gear pumps (for feeding and recirculation),with body of AISI 316 stainless steel, fl ow-rate 0 to 60 l/h
• Air compressor with body of stainless steel, fl ow rate of 1.5 Nm³/h
• Air diffuser of AISI 316 sintered stainless steel
• 2 magnetic-induction flowmeters (for feeding and recirculation) with range of 0 to 60 l/h and 4 to 20 mA output signal
• Flowmeter for measuring air flow rate to oxidation reactor, with micro-valve; range of 0 to 180 Nl/h
• Thermo-resistance Pt 100 with board-type digital temperature indicator
• Microprocessor-type electronic dissolved oxygen indicator transmitter, with range of 0 to 10 ppm

• Microprocessor-type electronic pH indicator-transmitter, with range of 0 to 14 pH
• Digital indicator of feed flow rate
• Digital indicator of sludge recycle flow rate
• Connecting lines and valves of AISI 304 and 316 stainless steel
• Switchboard IP55, complying with EC conformity mark, including plant synoptic and ELCB Power supply: 230 Vac 50 Hz single-phase – 1 kVA
(Other voltage and frequency under request)
Dimensions: 1550 x 670 x 1870 mm
Weight:250kg
Installation, Training and Commisisoning is required.
